HATEC F |
|
The heat bridges can be reduced if heat insulators are employed. |
|

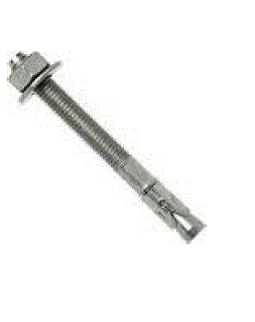

Anchor bolts M10x90
Material: steel (expansion clip, stainless steel A2) Surface: galvanized Used to fix: support, Straps, metalware, consoles, cable trays, Mounting rails, suspended ceiling, etc. On uncracked normal concrete of the complete class ≥ C20/25 and ≤ C50/60.
Load areas: Tensile load 3,6-36,9 kN
Shear 2,9-37,1 kN
Benefits: ● high permitted loads ● Small axis and edge distances ( from 4cm at M6) ● Easy and fast through-hole ● Directly loadable – no wait time European Technical Approval Option 7 for non-cracked concrete |
