Sunshade system, Als-haller, Hatec S-10 "C louvre boards"

ALS Haller GmbH

Tel. 0043 3359 29 329

Fax: DW – 44

office@als-haller.at

The Hatec S-10 is a fixed external sunshade system with louvre boards which protects the building from heat in summer months however by letting the most possible light in. In winter - due to flatter incident angle - sunbeams contact the window surface and heat the room behind it.

The incident angle of sunlight, the shading factor, the geographical position of the building and wind load and snow load are considered during planning.

The Hatec S-10 sunshade system with C-shaped louvre boards made of excellent-quality AlMgSi 0,5 alloy is available in board-thicknesses of 1.2, 1.4 and 2 mm. The board thickness is defined based on the distribution of support elements and wind load and snow load.

The Hatec S-10, according to the request of the sponsor or the architect, can be placed either as sunshade extending over and above the window or in front of the window, vertically. Both placement methods allow undisturbed window opening and do not limit the visibility.

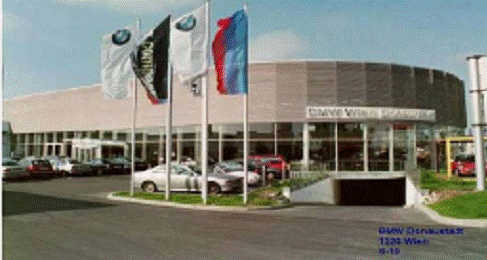

Our system can boast energy savings achieved with sunshades, air conditioning equipment (low-energy houses) and new, creative architectural opportunities owing to the multitude of colours and shapes.

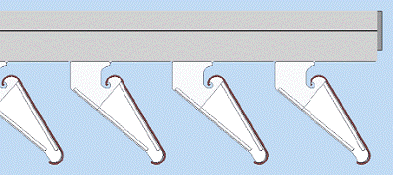

The fixing of louvre board s on the support profiles by makrolon (polycarbonate) fixing elements takes up longitudinal dilatation and prevents the transfer of vibration to the building at the same time.

Hatec S-10

Technical specification:

Louvre board thickness                                             :
Louvre board width                                                    :
Louvre board length                                                   :
louvre board design                                                   :
Anodic oxidation                                                         :
Powder coating                                                           :
Support                                                                        :

Span of supports                                                        :
Support structure                                                        :
Fixing material                                                            :
Heat insulation of the support structure                  :
Tilt angle of louvre board s                                       :
Louvre board support                                                :
Maintenance                                                               :

S-10 and perforated S-10

Specification of Hatec S-10

For reducing direct sun radiation intruding glass surfaces. The no-handling and no-maintenance system stands off heat however insures almost obstacle-free visibility.
The louvre boards and the supports are rust-free AlMgSi 0,5 aluminium profiles.
The consoles serving as the support structure are made of hot dip galvanized ST 37 steel. The material of the fixing elements is V4A/V2A stainless steel. For avoiding noise caused by the wind and dilatation emerging as an effect of the heat the Hatec sunshade louvre boards are connected to the support profiles with RAL7035-colour plastic support elements. Each louvre board can be dismantled non-destructively.

Placement :

Horizontally
Support on the top or at the bottom above extension of 2.3 m
Mounting with consoles gliding into one another
Internal corners, external corners
The louvre boards are located either abovre or under the support elements
Louvre board angle: 30°, 45°, 80° top-mounted or 60° bottom-mounted

Technical specification:

Elongation                                                                   :
Full length                                                                    :
Span of supports                                                        :
Distance between louvre board s                            :
Louvre board width                                                    :
Louvre board thickness                                             :
Louvre board design                                                  :
Support                                                                        :
Louvre board support                                                :

Surface treatment:

Raw aluminium (untreated)                                      :
Natural anodized aluminium                                     :
Powder coated, in RAL colours                               :

Hatec S-10 „C louvre boards“

PDF file :
S-10 model

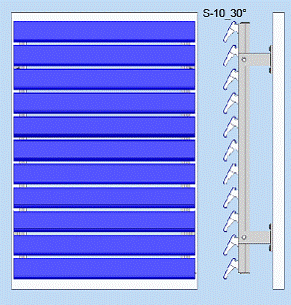

S-10/30 :
30°C S-10 model

S-10/45 :
45°C S-10 model

S-10/60 :
60°C S-10 model

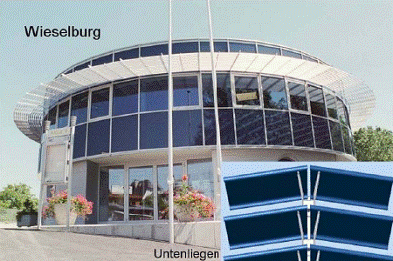

60°C S-10 untenliegend model

S-10/80 :
80°C S-10 model

Ausschreibungstexte : Hatec S 10/Hatec S 10 Vertikal
